dormakaba

Interior Glass Systems, Fittings & Locks

Mundus, Universal, Arcos, ALEXA, Muto

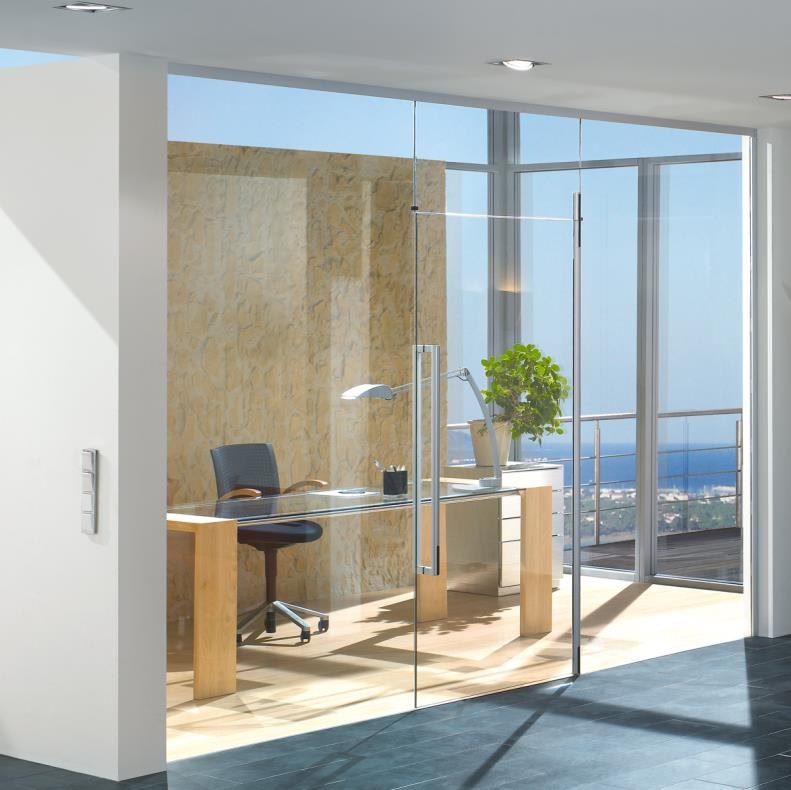

The complete dormakaba Interior Glass Systems programme — fittings for toughened glass assemblies, aluminium frame profiles, manual sliding systems and euro profile cylinders — so that toughened glass becomes the architecture rather than the infill. Fittings suit single-leaf and double-leaf glass doors with sidelights and overpanels.

Enquire about this product

At a glance

Common questions about Interior Glass Systems, Fittings & Locks

What are toughened glass fittings?

They are the patch fittings, hinges, locks and profiles that let a toughened glass leaf function as a door or partition without a surrounding frame. Alumina Engineering supplies the complete dormakaba Interior Glass Systems programme — fittings, ALEXA aluminium frame profiles, manual sliding systems and euro profile cylinders.

Which fitting families are available?

Mundus, Beyond, Visur, Tensor, Universal, Universal light, Arcos Universal and BM. The Universal family alone offers 24 standard configurations for single-leaf and double-leaf glass assemblies with sidelights and overpanels.

How is glass-door locking handled?

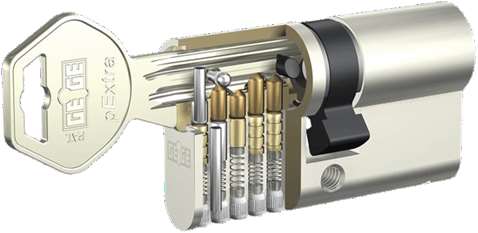

With euro profile cylinders using patented key profiles that are extremely difficult to copy, and an optional key with RFID fob that combines mechanical and electronic access on one carrier.

Gallery

Interior Glass Systems, Fittings & Locks — reference image

Range & specifications

What’s available within Interior Glass Systems, Fittings & Locks

Sub-categories, series and technical data as published by the manufacturer. Tell us the opening and we will specify the right variant.

Mundus Comfort

Toughened glass 8–12 mm
Max. door weight 150 kg, max. width 1100 mm
Finish: satin & polished stainless steel, anodized, powder coated
Locking: euro profile cylinder · Longevity 500,000 cycles

Mundus Premium

Toughened glass 8–22 mm
Max. door weight 200 kg, max. width 1300 mm
Finish: anodized, powder coated, wet coated, stainless steel, glass on request
Longevity 1,000,000 cycles

Universal Fittings

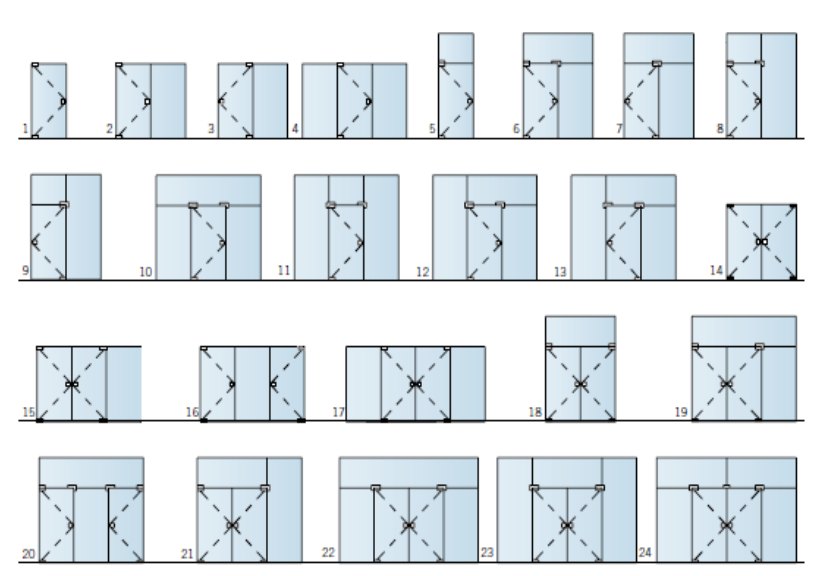

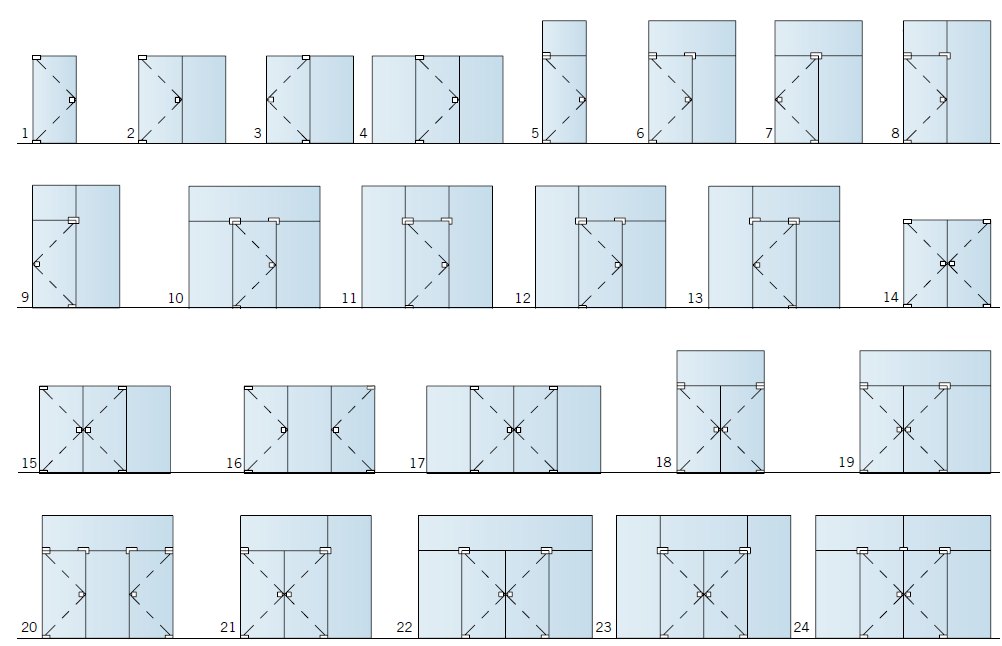

24 standard types for toughened glass assemblies — doors with sidelights and overpanels.

Toughened glass 8, 10, 12 mm
Max. door weight 130 kg, max. width 1300 mm
Finish: anodised and RAL colours, brass, stainless steel
Locking: non-lockable, profile cylinder or patch locks

Universal light Fittings

Toughened glass 10–12 mm
Max. door weight 100 kg, max. width 1100 mm
Finish: stainless steel · Locking: euro profile cylinder
Combines with all dormakaba floor spring door closers

Universal Arcos Fittings

Toughened glass 8, 10, 12 mm
Max. door weight 130 kg, max. width 1300 mm
Finish: aluminium silver EV1, stainless steel
24 standard types for toughened glass assemblies

Beyond Fittings

Toughened glass 10–12 mm
Max. door weight 80 kg, width 1000 mm, height 2200 mm
Finish: anodized colours
1- or 2-panel, sidelight, overpanel, glass assembly

Visur Fittings

Toughened glass 10–12 mm
Max. door weight 85 kg, width 1100 mm, height 2500 mm
Finish: aluminium, aluminium silver EV1

Tensor & BM Fittings

Tensor: glass 8/10/12 mm, max. weight 65 kg, height up to 2500 mm
BM: glass 10 mm, max. weight 80–100 kg, polished stainless steel
BM combines with dormakaba floor spring closer BTS 84

STUDIO & OFFICE hardware

STUDIO Rondo / STUDIO Arcos: glass 8–10 mm, 45/55 kg
OFFICE Junior / Classic / Arcos: glass 8–12 mm, 55 kg
Locking: non-locking latch, profile cylinder, regular key, toilet lock
Single- or double-leaf doors

ALEXA aluminium frame profiles

AT23 / AT23E: glass 8–10 mm, 40 kg (2 hinges) to 55 kg (3 hinges)
AT44 / AT50: glass 8–10 mm, 45–65 kg depending on hinge type
AT45: glass 8/10/12 mm, visible profile width only 25 mm
Compatible with all STUDIO and OFFICE hardware

Wall connection & Universal TP profiles

Wall connection profile in aluminium or stainless steel, visible width 40 mm
Clean finish of glass constructions to wall, ceiling and floor
Universal TP: glass 8–19 mm, rail height 100 mm, indoor or outdoor

Muto manual sliding door system

Series: Muto Comfort M60 / L80, Muto Premium XL80 / XL150, Self-closing, Telescopic
Glass ESG or LSG up to 13.5 mm; timber up to 50 mm
Max. door height up to 3000 mm; weight up to 150 kg
Self-closing and Dormotion soft-stop functions

Key features

Fittings families: Mundus, Beyond, Visur, Tensor, Universal, Universal light, Arcos Universal, BM
Universal fittings offer 24 standard configurations for glass assemblies
ALEXA aluminium frame profiles AT23, AT23E, AT44, AT45, AT50
Euro profile cylinders with patented key profiles that are extremely difficult to copy

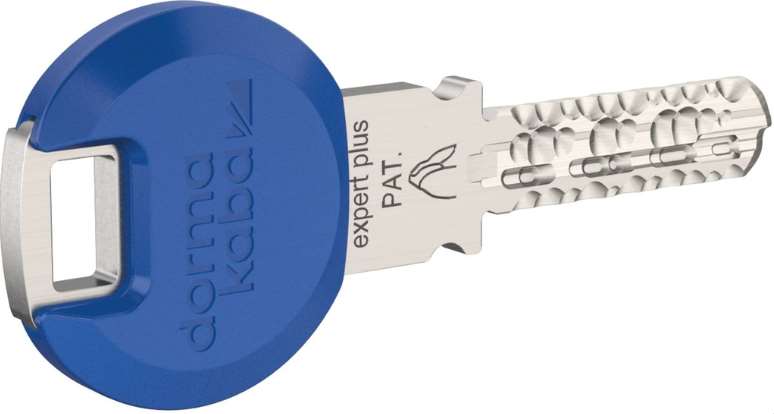

Optional key with RFID fob for combined mechanical and electronic access
