Movable Partitions & Operable Acoustic Walls

Skyfold, Variflex & MOVEO Glass

Flexible room-separation systems for spaces that need to change without compromising acoustics, privacy or architectural quality. Alumina Engineering supplies Skyfold vertical retractable walls, Variflex horizontal movable walls and MOVEO Glass operable glass partitions for offices, conference rooms, banquet halls, auditoriums, hotels and other flexible spaces.

Enquire about this product

At a glance

Common questions about Movable Partitions & Operable Acoustic Walls

What are operable acoustic walls?

They are movable partitions that divide one large room into separately usable, acoustically separated spaces and retract when the full room is needed. Skyfold walls descend vertically from the ceiling at the touch of a button, so no floor tracks and no wall storage pockets are required; Variflex horizontal systems suit plans where a sliding wall works better.

How much sound separation can they achieve?

Skyfold vertical retractable walls reach a sound reduction index of up to 59 dB. System length is unlimited and system height reaches up to 14,000 mm.

Where are operable walls used?

Banquet halls, boardrooms, auditoriums, training rooms and hotels — with finishes in vinyl, fabric, wood veneer, specialty metals and laminates.

What is MOVEO Glass?

MOVEO Glass is a fully glazed operable partition system that combines visual transparency with flexible room division and documented sound reduction of up to 50 dB.

What are the dimensions of MOVEO Glass?

The MOVEO Glass technical brochure specifies a 100 mm element thickness, clear heights from 2,000 to 4,000 mm and element widths from 600 to 1,250 mm.

Where can MOVEO Glass be used?

MOVEO Glass is documented for offices and conference rooms, restaurants, hotels, lounges and foyers, education and leisure facilities, and other spaces requiring flexible transparent room configurations.

Can MOVEO Glass include blinds?

Yes. The documented system options include electrically controlled blinds integrated within the glazing elements.

Gallery

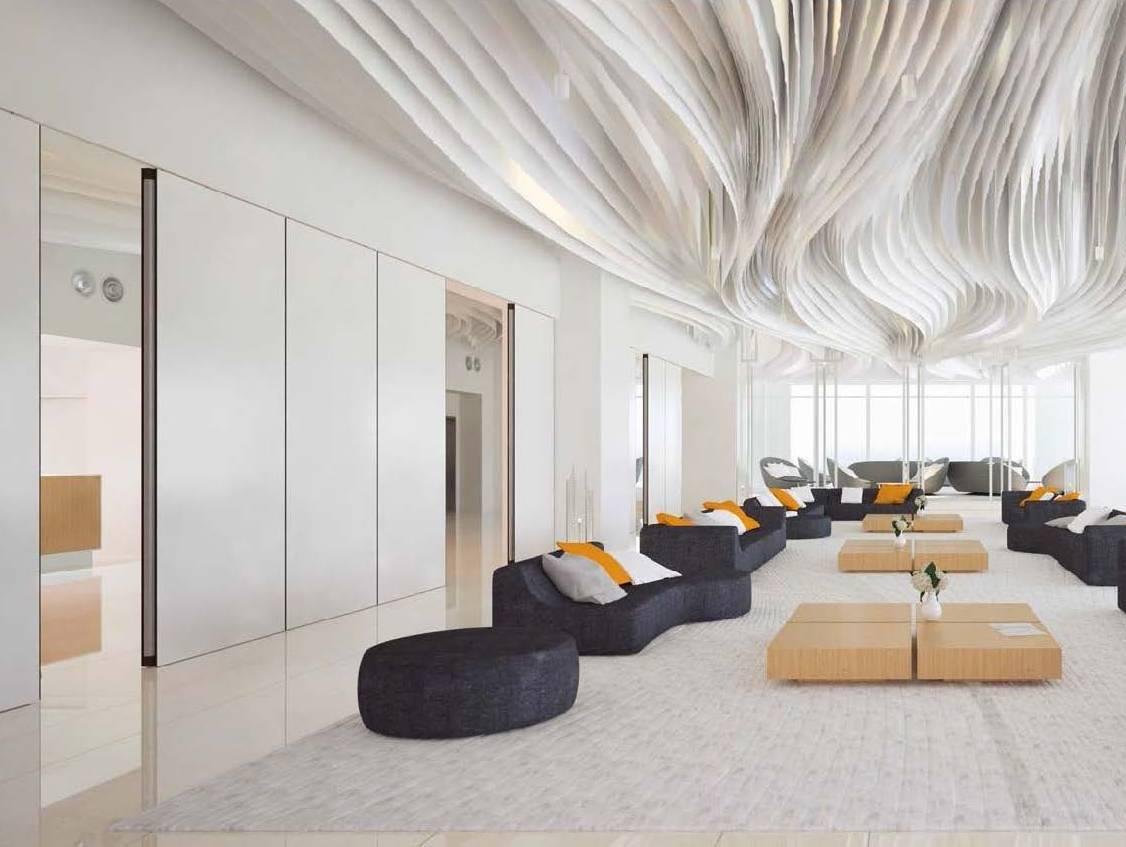

Movable Partitions & Operable Acoustic Walls ΓÇö reference image

Range & specifications

What’s available within Movable Partitions & Operable Acoustic Walls

Sub-categories, series and technical data as published by the manufacturer. Tell us the opening and we will specify the right variant.

Skyfold Zenith

Maximum system height 3,660 mm
Maximum system width 14,600 mm
Sound reduction index 47–59 dB
Finishes include vinyl, fabric, wood veneer, specialty metals and laminates

Skyfold Classic

Maximum system height 11,000 mm
Unlimited system width
Sound reduction index 51–59 dB
Finishes include vinyl, fabric, specialty metals, laminates, marking surfaces and wood veneer

Skyfold Mirage

Maximum system height 7,310 mm with unlimited width
Sound reduction index 34 dB
Clear laminated glass, plexiglass, Lexan, bullet-resistant glass and frosted glass insert options

Variflex horizontal movable walls

Variflex 88, Variflex ML 88 and Variflex EI 30 series
Manual, semi-automatic or fully automatic operation
Panel width up to 1,250 mm
System height up to 14,000 mm
Sound reduction values up to 58 dB

MOVEO Glass

Fully glazed operable partitioning for flexible spaces where transparency, daylight and acoustic separation need to work together.

Fully glazed operable partition system
Element thickness: 100 mm
Clear height: 2,000–4,000 mm
Element width: 600–1,250 mm
Sound reduction: 44 dB and 50 dB documented configurations
Double-skin toughened safety glazing
Optional electrically controlled integrated blinds
ComforTronic actuator for electronically controlled sealing-strip extension and retraction
Can be combined with other MOVEO elements

Technical documentation

MOVEO Glass — Product Brochure

Official manufacturer brochure covering the MOVEO Glass system, applications, configurations and technical specifications.

View brochure Download PDF

Key features

Skyfold vertical retractable acoustic walls with no floor tracks or wall storage pockets
Variflex horizontal movable walls with manual, semi-automatic and fully automatic operation
MOVEO Glass transparent operable partitions combining daylight and acoustic separation
MOVEO Glass sound reduction values of 44 dB and 50 dB in documented configurations
MOVEO Glass element thickness of 100 mm
MOVEO Glass clear height range of 2,000–4,000 mm
MOVEO Glass element width of 600–1,250 mm
Optional electrically controlled blinds for MOVEO Glass
ComforTronic actuator for electronically controlled extension and retraction of sealing strips
Configurations and finishes selected according to project requirements

Applications

Corporate officesBoardroomsConference roomsTraining roomsBanquet hallsAuditoriumsHotelsRestaurantsLounges and foyersEducation and leisure facilitiesRoom-in-room arrangementsRoom-corridor arrangements
